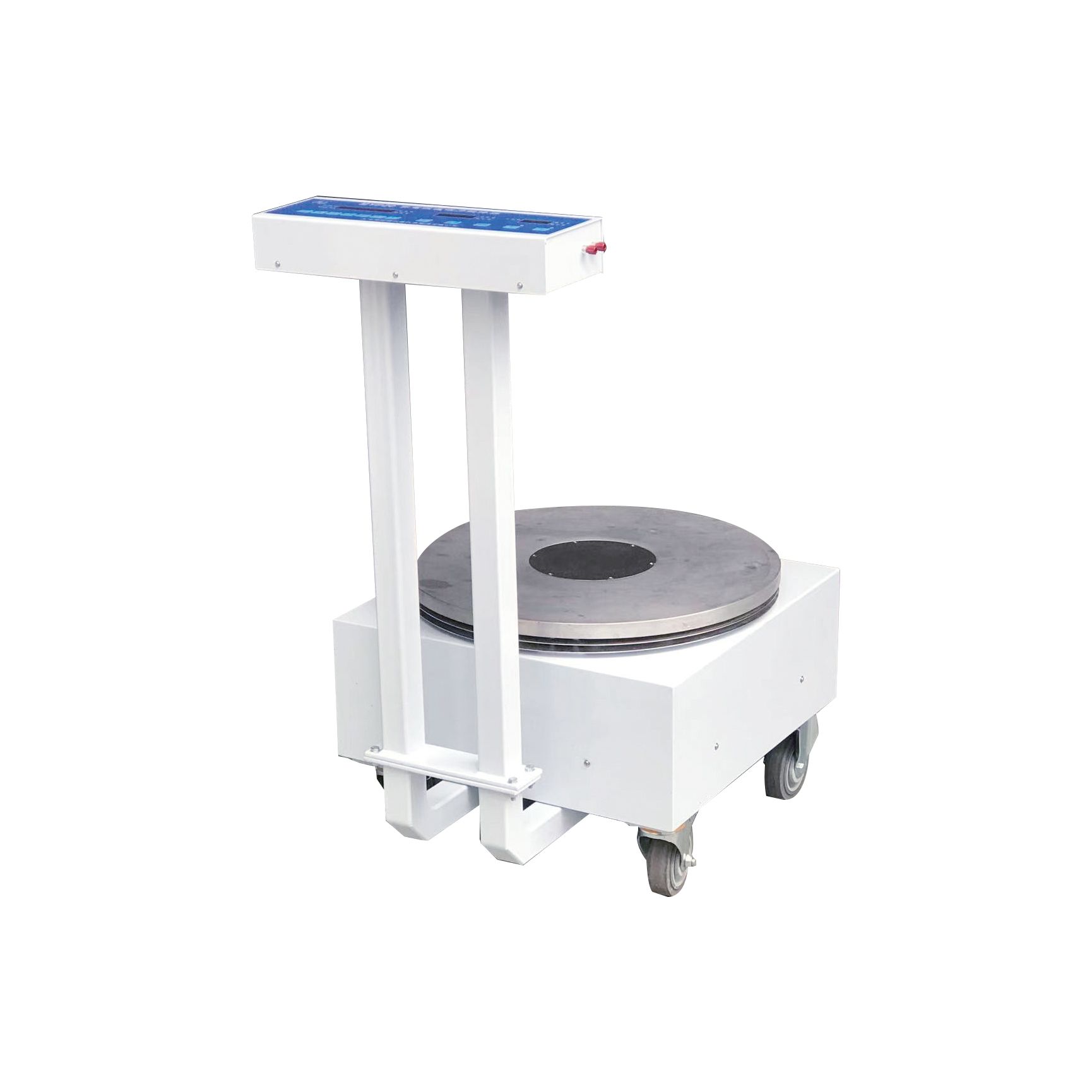

MYP20 Large-Capacity Temperature-Controlled Magnetic Stirrer with Weighing

The right side of the control panel controls stirring and temperature; the left side controls weighing.


I.Main technical specifications:

Power supply:  AC220V±10%             Stirring power:150W

Stirring speed:60-1400r/min           Heating power:4.3kw

Heating plate temperature 50～300℃ Heating plate protection temperature 350℃

Heating plate diameter:500mm                  Work surface height:375mm

Maximum weighing capacity:250kg                       Weighing accuracy:0.1kg

Stirring timer:  1-9999min             Maximum resolution: 0.01kg

Maximum stirring capacity:100L（H2O）     Dimensions 620×500×890(mm)

Before use Installation:

Install the control panel on the main unit. First insert the circular connectors inside the two control-panel supports into their corresponding sockets on the main unit, aligning the grooves. Then secure the control panel to the main unit with bolts and nuts.

Because this stirrer has high heating power and its current exceeds 20 amperes, direct connection of the power cable to a circuit breaker is recommended. Connect the yellow-green wire to earth and the other two wires to live and neutral respectively. If a plug is used for convenient relocation, the current ratings of the plug and socket must exceed 30A and the contacts must fit securely. Install a circuit breaker upstream of the socket and switch it off before inserting or removing the plug. Important:Do not mistakenly connect to a 380V three-phase power supply.
